The mid-range GPU segment is highly overcrowded, and Nvidia, with its RTX 50-series, aims to bring some balance in terms of price, performance, and features. The RTX 5060 Ti 16GB is one of the most interesting cards in the lineup, offering the power of the Blackwell architecture along with DLSS 4, Frame Generation, ray tracing upgrades, and a much-needed VRAM boost. The model we are testing today is the Inno3d Geforce RTX 5060 Ti 16GB Twin X2. Let’s dive in to see how it stacks up against its bigger siblings.
Inno3d Geforce RTX 5060 Ti 16GB Twin X2 – Design, Cooling & Specs

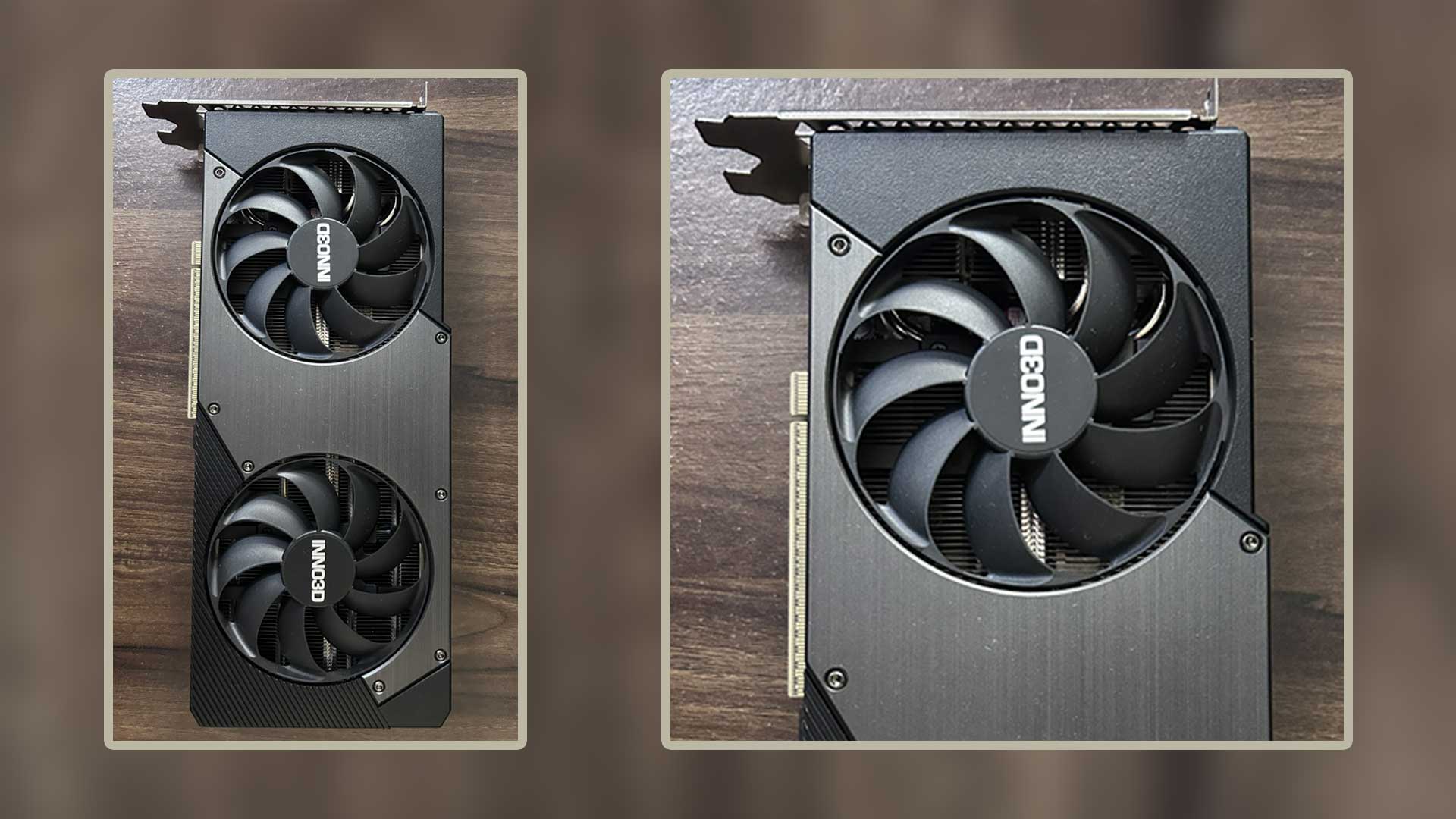

Inno3D offers two cooler designs: Twin X2 (dual-fan) and X3 (triple-fan). Both models come equipped with thick heatsinks, copper heat pipes, and solid backplates for added rigidity. Compared to the X2, the X3 is bulkier and provides better headroom for overclocking. The X2, on the other hand, focuses on a quieter, sleeker dual-slot design that fits well in small and mid-form-factor builds. With overclocking, you can push the card up to 2,602 MHz.
In short, the X2 is capable of handling heavy loads and long gaming sessions, while the X3 runs cooler under overclocking thanks to its triple-fan chassis. Performance (FPS) remains nearly identical on both, but users who prioritize thermals and longevity may prefer the X3. Meanwhile, the X2 is the better choice for those who value compact PC builds.
The card features 4608 CUDA Cores and 16GB of GDDR7 memory (128-bit interface). Here are its detailed specs.
- CUDA Cores: 4608
- Boost Clock (MHz): 2572MHz
- Base Clock (MHz): 2407MHz
- Standard Memory Config: 16GB GDDR7
- Memory Clock: 28Gbps
- Memory Interface Width: 128-bit
- Memory Bandwidth (GB/sec): 448 GB/sec
- Real-Time Ray Tracing: 4th Generation, 72 TFLOPS
- Tensor Cores: 5th Generation, 759 AI TOPS
- Bus Support: PCI Express Gen 5
- NVIDIA Architecture: Blackwell
- DirectX: 12 Ultimate
- Nvidia DLSS: 4
- Nvidia Ansel, FreeStyle, ShadowPlay, G-Sync Ready.
- Minimum System Power Requirement (W): 650W
- Supplementary Power Connectors: 1x PCIe 8-pin cables
- LxHxW: 250mm x 116mm x 41mm
- Multi Monitor: Upto 4.
- Max Digital Resolution: 4K at 480Hz or 8K at 165Hz with DSC
- HDCP: 2.3

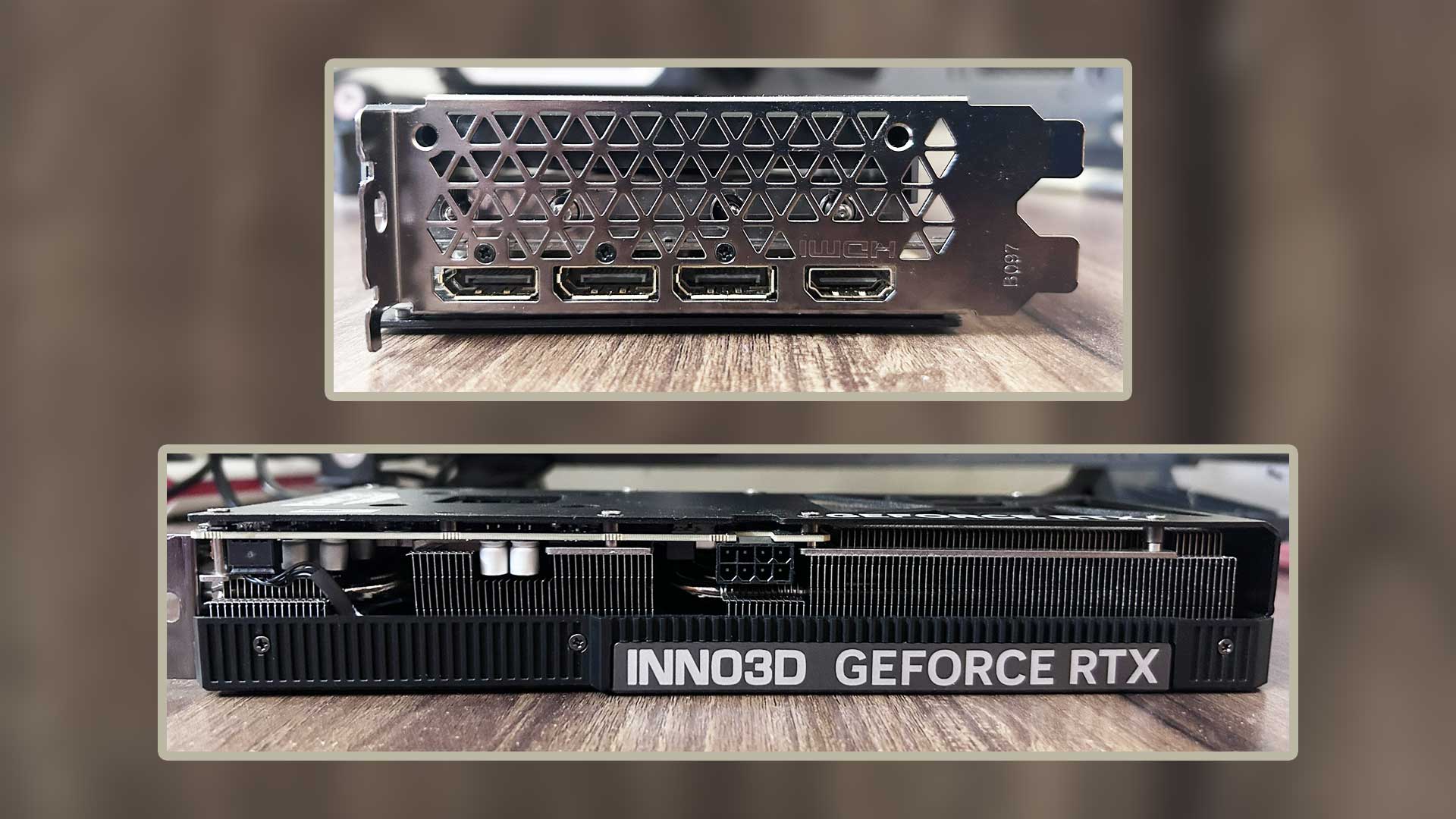

- Standard Display Connectors: 3x DisplayPort 2.1b, 1x HDMI 2.1b
It has a decent overall build quality. It features a metal backplate and a sturdy fan shroud, though it does not include RGB lighting. Thermally, the card performs within an acceptable range under load, with temperatures typically sitting between 65-75 °C during gaming. Fan noise is moderate and generally unobtrusive, though it can become more noticeable under heavy 4K workloads when cooling demand increases. Overall, the card’s design is efficient and compact, making it a strong choice for small and mid-form-factor builds. One of its biggest advantages is delivering smooth 1440p gaming performance in a size-friendly package.
Inno3d Geforce RTX 5060 Ti 16GB Twin X2 Performance
Test Rig:
- CPU: Ryzen 9 7950X
- Memory: 32 GB DDR5
- Storage: 1 TB NVMe
- Motherboard: TUF Gaming X670E-Plus
- PSU: Antec Signature 1000W
- Gigabyte 32-inch Gaming Monitor
The above test rig is a high-end one with almost no CPU bottlenecks in modern gaming. Coupled with Innno3d Geforce RTX 5060 Ti 16GB Twin X2, the rig is designed to ensure there are no hardware limitations in achieving the best performance at max resolution. Below are the benchmarking results we got while testing the GPU.
The Inno3D GeForce RTX 5060 Ti 16GB delivered 41 FPS during the “Speed Way” benchmarking test at 1440p Ultra settings. The card handled heavy ray tracing reasonably well, offering playable performance, though not ultra-high FPS.

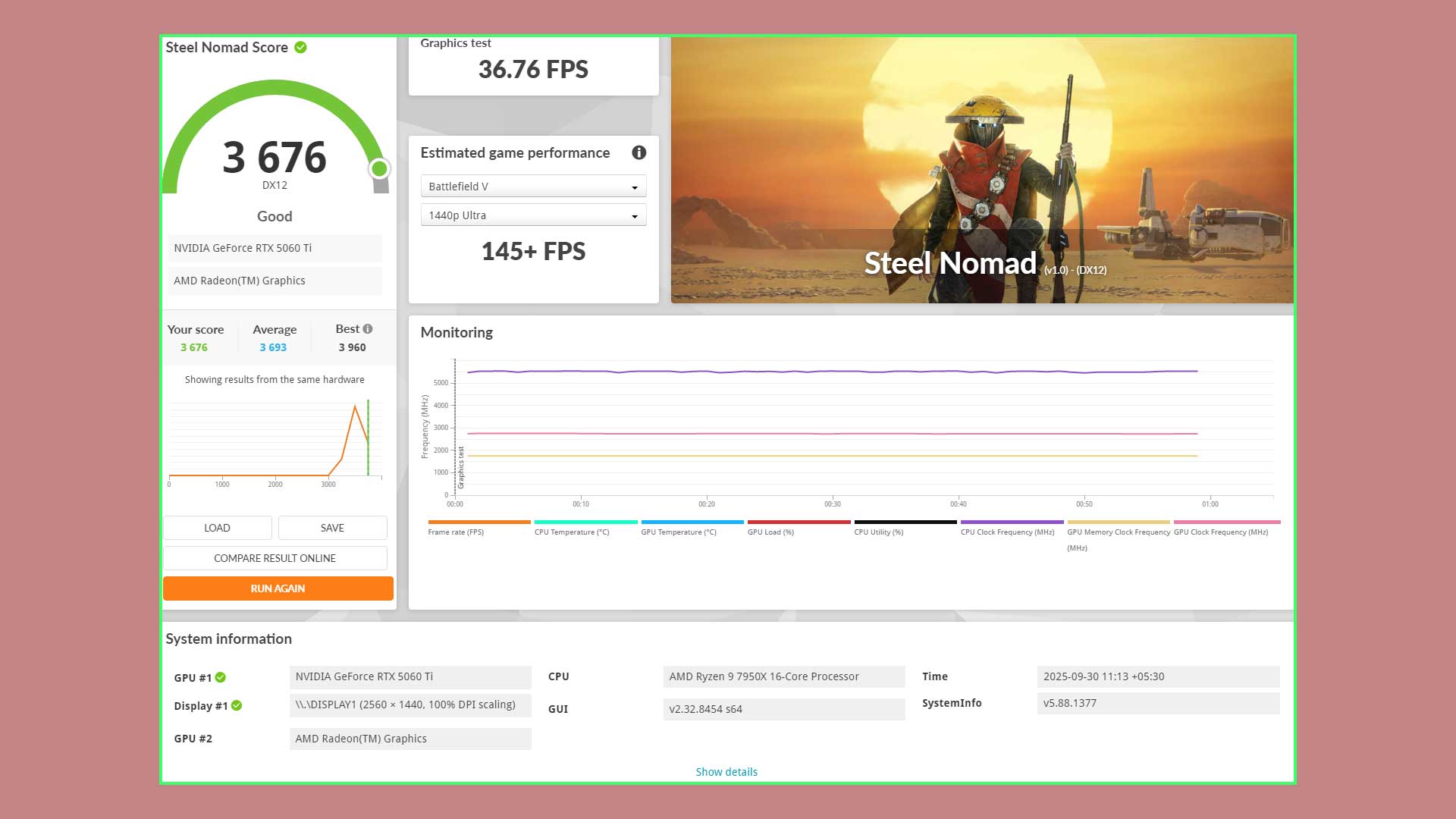

“Steel Nomad” is another demanding next-gen simulation test, where FPS were modest, highlighting the card’s capability under more intensive loads. Finally, in the “Time Spy” benchmark, the Inno3d Geforce RTX 5060 Ti 16GB Twin X2 achieved an excellent score. Here’s what you can generally expect from this graphics card:
- 1080p Ultra – Around 120-200 FPS. Ideal for AAA titles and esports gaming.
- 1440p Ultra – Around 70-120 FPS, potentially dropping to 55 FPS with ray tracing enabled.
- 4K High/Ultra – Around 40-70 FPS with DLSS 4 & Frame Generator. Performance may vary depending on your system configuration. Not recommended for native 4K Ultra gaming.
Overall, the Inno3d Geforce RTX 5060 Ti 16GB Twin X2 is a 1080p powerhouse and has a solid sweet spot in the 1440p category. DLSS can push performance slightly higher, but high-resolution gaming also depends on supporting hardware—such as NVMe drives for faster loading speeds, a high-end CPU to prevent bottlenecks, and sufficient RAM to handle modern workloads.
5070 Ti X2 vs 5060 Ti – Which is Better?
We recently tested the INNO3D RTX 5070 Ti X2 OC 16GB, the larger variant featuring the X3 cooling design. This GPU delivers approximately 25–30% higher FPS at 1080p and around 40% higher FPS at 1440p in ray-tracing-intensive games compared to its predecessor. For 1440p gaming, the RTX 5070 Ti is recommended; however, this performance boost comes with a higher price tag. In contrast, the RTX 5060 Ti is priced about 50–70% lower, making it an attractive option for building a mid-range budget gaming PC.
For those who want maximum frame rates at 1440p, the RTX 5070 Ti justifies the additional investment. However, if you’re satisfied with high-quality 1080p gaming or balanced 1440p performance, the RTX 5060 Ti offers a smarter, more cost-effective choice.
Current Pricing (as of September 2025):
Inno3d Geforce RTX 5060 Ti 16GB Twin X2 16GB:
- USD: Approximately $379 – $429
- INR: Approximately 45,738 – 69,300
Inno3D GeForce RTX 5070 Ti X3 OC 16GB:
- USD: Approximately $499 – $834
- INR: Approximately 87,165 – 134,100
Note: Prices are subject to change based on retailer and region. It’s advisable to check current listings for the most accurate pricing.
Verdict
From a gamer’s perspective, the Inno3d Geforce RTX 5060 Ti 16GB Twin X2 is an excellent upper-midrange graphics card. For gaming at 1080p or 1440p on High/Ultra settings, it delivers balanced and consistent performance. It offers great value, comes packed with modern features, and has enough VRAM to handle future AAA titles at these resolutions. Ideal for esports, the gpu can exceed expectations in competitive gaming.
